#include "shz_vector.h"
#include "shz_quat.h"
#include "inline/shz_xmtrx.inl.h"

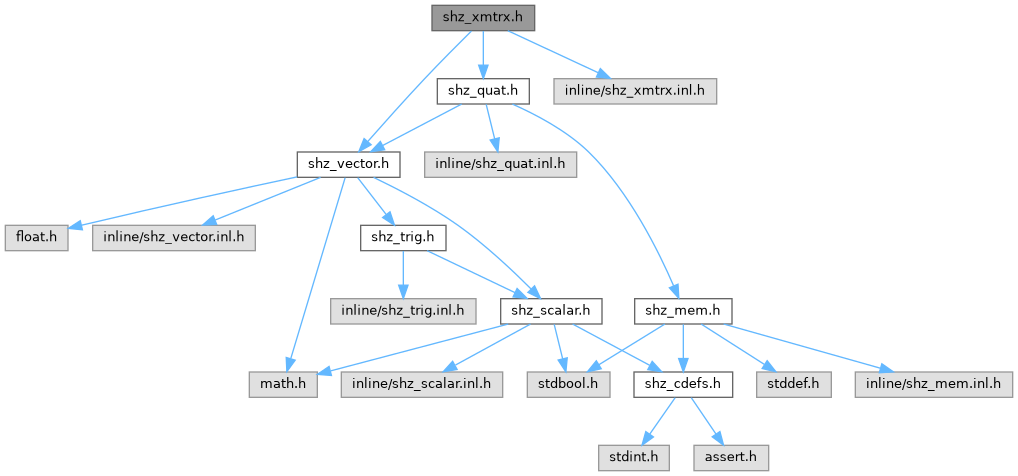

Include dependency graph for shz_xmtrx.h:

This graph shows which files directly or indirectly include this file:

Enumerations
enum	shz_xmtrx_reg { SHZ_XMTRX_XF0 , SHZ_XMTRX_XF1 , SHZ_XMTRX_XF2 , SHZ_XMTRX_XF3 , SHZ_XMTRX_XF4 , SHZ_XMTRX_XF5 , SHZ_XMTRX_XF6 , SHZ_XMTRX_XF7 , SHZ_XMTRX_XF8 , SHZ_XMTRX_XF9 , SHZ_XMTRX_XF10 , SHZ_XMTRX_XF11 , SHZ_XMTRX_XF12 , SHZ_XMTRX_XF13 , SHZ_XMTRX_XF14 , SHZ_XMTRX_XF15 }

Functions
Accessors
Setting and retrieving individual XMTRX register values.
float	shz_xmtrx_read (shz_xmtrx_reg_t xf) SHZ_NOEXCEPT

void	shz_xmtrx_write (shz_xmtrx_reg_t xf, float value) SHZ_NOEXCEPT

shz_vec4_t	shz_xmtrx_read_row (unsigned int index) SHZ_NOEXCEPT

shz_vec4_t	shz_xmtrx_read_col (unsigned int index) SHZ_NOEXCEPT

void	shz_xmtrx_write_row (unsigned int index, shz_vec4_t vector) SHZ_NOEXCEPT

void	shz_xmtrx_write_col (unsigned int index, shz_vec4_t vector) SHZ_NOEXCEPT

void	shz_xmtrx_swap_rows (unsigned int index1, unsigned int index2) SHZ_NOEXCEPT

void	shz_xmtrx_swap_cols (unsigned int index1, unsigned int index2) SHZ_NOEXCEPT

Loading
Routines for loading XMTRX contents from memory.
void	shz_xmtrx_load_4x4 (const shz_mat4x4_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_load_wxyz_4x4 (const shz_mat4x4_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_load_unaligned_4x4 (const float matrix[16]) SHZ_NOEXCEPT

void	shz_xmtrx_load_cols_4x4 (const shz_vec4_t c1, const shz_vec4_t c2, const shz_vec4_t c3, const shz_vec4_t c4) SHZ_NOEXCEPT

void	shz_xmtrx_load_rows_4x4 (const shz_vec4_t r1, const shz_vec4_t r2, const shz_vec4_t r3, const shz_vec4_t r4) SHZ_NOEXCEPT

void	shz_xmtrx_load_transpose_4x4 (const shz_mat4x4_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_load_transpose_unaligned_4x4 (const float matrix[16]) SHZ_NOEXCEPT

void	shz_xmtrx_load_3x4 (const shz_mat3x4_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_load_cols_4x3 (const shz_vec4_t c1, const shz_vec4_t c2, const shz_vec4_t *c3) SHZ_NOEXCEPT

void	shz_xmtrx_load_rows_3x4 (const shz_vec4_t r1, const shz_vec4_t r2, const shz_vec4_t *r3) SHZ_NOEXCEPT

void	shz_xmtrx_load_3x3 (const shz_mat3x3_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_load_transpose_3x3 (const float *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_load_2x2 (const shz_mat2x2_t *matrix) SHZ_NOEXCEPT

Storing
Routines for saving XMTRX contents to memory.
void	shz_xmtrx_store_4x4 (shz_mat4x4_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_store_unaligned_4x4 (float matrix[16]) SHZ_NOEXCEPT

void	shz_xmtrx_store_transpose_4x4 (shz_mat4x4_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_store_transpose_unaligned_4x4 (float matrix[16]) SHZ_NOEXCEPT

void	shz_xmtrx_store_3x4 (shz_mat3x4_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_store_3x3 (shz_mat3x3_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_store_transpose_3x3 (shz_mat3x3_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_store_2x2 (shz_mat2x2_t *matrix) SHZ_NOEXCEPT

Initialization
Routines used to initialize the entirety of XMTRX.
void	shz_xmtrx_init_identity (void) SHZ_NOEXCEPT

void	shz_xmtrx_init_identity_safe (void) SHZ_NOEXCEPT

void	shz_xmtrx_init_zero (void) SHZ_NOEXCEPT

void	shz_xmtrx_init_one (void) SHZ_NOEXCEPT

void	shz_xmtrx_init_fill (float value) SHZ_NOEXCEPT

void	shz_xmtrx_init_translation (float x, float y, float z) SHZ_NOEXCEPT

void	shz_xmtrx_init_scale (float x, float y, float z) SHZ_NOEXCEPT

void	shz_xmtrx_init_rotation_x (float x) SHZ_NOEXCEPT

void	shz_xmtrx_init_rotation_y (float y) SHZ_NOEXCEPT

void	shz_xmtrx_init_rotation_z (float z) SHZ_NOEXCEPT

void	shz_xmtrx_init_rotation_xyz (float xAngle, float yAngle, float zAngle) SHZ_NOEXCEPT

void	shz_xmtrx_init_rotation_zyx (float zAngle, float yAngle, float xAngle) SHZ_NOEXCEPT

void	shz_xmtrx_init_rotation_zxy (float zAngle, float xAngle, float yAngle) SHZ_NOEXCEPT

void	shz_xmtrx_init_rotation_yxz (float yAngle, float xAngle, float zAngle) SHZ_NOEXCEPT

void	shz_xmtrx_init_rotation (float angle, float xAxis, float yAxis, float zAxis) SHZ_NOEXCEPT

void	shz_xmtrx_init_diagonal (float x, float y, float z, float w) SHZ_NOEXCEPT

void	shz_xmtrx_init_upper_triangular (float col1, shz_vec2_t col2, shz_vec3_t col3, shz_vec4_t col4) SHZ_NOEXCEPT

void	shz_xmtrx_init_lower_triangular (shz_vec4_t col1, shz_vec3_t col2, shz_vec2_t col3, float col4) SHZ_NOEXCEPT

void	shz_xmtrx_init_symmetric_skew (float x, float y, float z) SHZ_NOEXCEPT

void	shz_xmtrx_init_outer_product (shz_vec4_t x, shz_vec4_t y) SHZ_NOEXCEPT

void	shz_xmtrx_init_permutation_wxyz (void) SHZ_NOEXCEPT

void	shz_xmtrx_init_permutation_yzwx (void) SHZ_NOEXCEPT

void	shz_xmtrx_init_screen (float width, float height) SHZ_NOEXCEPT

void	shz_xmtrx_init_lookat (shz_vec3_t eye, shz_vec3_t center, shz_vec3_t up) SHZ_NOEXCEPT

void	shz_xmtrx_init_ortho (float left, float right, float bottom, float top, float near, float far) SHZ_NOEXCEPT

void	shz_xmtrx_init_frustum (float left, float right, float bottom, float top, float near, float far) SHZ_NOEXCEPT

void	shz_xmtrx_init_perspective (float fov, float aspect, float near_z) SHZ_NOEXCEPT

void	shz_xmtrx_init_rotation_quat (shz_quat_t q) SHZ_NOEXCEPT

Apply Operation
Updates only relevant values of XMTRX based on the given transform.
void	shz_xmtrx_apply_4x4 (const shz_mat4x4_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_apply_unaligned_4x4 (const float matrix[16]) SHZ_NOEXCEPT

void	shz_xmtrx_apply_transpose_4x4 (const shz_mat4x4_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_apply_transpose_unaligned_4x4 (const float matrix[16]) SHZ_NOEXCEPT

void	shz_xmtrx_apply_reverse_4x4 (const shz_mat4x4_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_apply_reverse_unaligned_4x4 (const float matrix[16]) SHZ_NOEXCEPT

void	shz_xmtrx_apply_reverse_transpose_4x4 (const shz_mat4x4_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_apply_reverse_transpose_unaligned_4x4 (const float matrix[16]) SHZ_NOEXCEPT

void	shz_xmtrx_apply_3x4 (const shz_mat3x4_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_apply_3x3 (const shz_mat3x3_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_apply_transpose_3x3 (const shz_mat3x3_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_apply_2x2 (const shz_mat2x2_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_apply_translation (float x, float y, float z) SHZ_NOEXCEPT

void	shz_xmtrx_apply_scale (float x, float y, float z) SHZ_NOEXCEPT

void	shz_xmtrx_apply_rotation_x (float x) SHZ_NOEXCEPT

void	shz_xmtrx_apply_rotation_y (float y) SHZ_NOEXCEPT

void	shz_xmtrx_apply_rotation_z (float z) SHZ_NOEXCEPT

void	shz_xmtrx_apply_rotation_xyz (float xAngle, float yAngle, float zAngle) SHZ_NOEXCEPT

void	shz_xmtrx_apply_rotation_zyx (float zAngle, float yAngle, float xAngle) SHZ_NOEXCEPT

void	shz_xmtrx_apply_rotation_zxy (float zAngle, float xAngle, float yAngle) SHZ_NOEXCEPT

void	shz_xmtrx_apply_rotation_yxz (float yAngle, float xAngle, float zAngle) SHZ_NOEXCEPT

void	shz_xmtrx_apply_rotation (float angle, float x, float y, float z) SHZ_NOEXCEPT

void	shz_xmtrx_apply_rotation_quat (shz_quat_t quat) SHZ_NOEXCEPT

void	shz_xmtrx_apply_lookat (shz_vec3_t eye, shz_vec3_t center, shz_vec3_t up) SHZ_NOEXCEPT

void	shz_xmtrx_apply_ortho (float left, float right, float bottom, float top, float near, float far) SHZ_NOEXCEPT

void	shz_xmtrx_apply_frustum (float left, float right, float bottom, float top, float near, float far) SHZ_NOEXCEPT

void	shz_xmtrx_apply_perspective (float fov, float aspect, float near_z) SHZ_NOEXCEPT

void	shz_xmtrx_apply_screen (float width, float height) SHZ_NOEXCEPT

void	shz_xmtrx_apply_symmetric_skew (float x, float y, float z) SHZ_NOEXCEPT

void	shz_xmtrx_apply_permutation_wxyz (void) SHZ_NOEXCEPT

void	shz_xmtrx_apply_permutation_yzwx (void) SHZ_NOEXCEPT

void	shz_xmtrx_apply_self (void) SHZ_NOEXCEPT

GL Transformations
OpenGL-style 4x4 matrix transforms.
void	shz_xmtrx_translate (float x, float y, float z) SHZ_NOEXCEPT

void	shz_xmtrx_scale (float x, float y, float z) SHZ_NOEXCEPT

void	shz_xmtrx_rotate_x (float radians) SHZ_NOEXCEPT

void	shz_xmtrx_rotate_y (float radians) SHZ_NOEXCEPT

void	shz_xmtrx_rotate_z (float radians) SHZ_NOEXCEPT

void	shz_xmtrx_rotate_xyz (float xRadians, float yRadians, float zRadians) SHZ_NOEXCEPT

void	shz_xmtrx_rotate_zyx (float zRadians, float yRadians, float xRadians) SHZ_NOEXCEPT

void	shz_xmtrx_rotate_zxy (float zRadians, float xRadians, float yRadians) SHZ_NOEXCEPT

void	shz_xmtrx_rotate_yxz (float yRadians, float xRadians, float zRadians) SHZ_NOEXCEPT

void	shz_xmtrx_rotate (float radians, float xAxis, float yAxis, float zAxis) SHZ_NOEXCEPT

Compound Operations
Multiple operations combined into one pipelined transaction.
void	shz_xmtrx_load_apply_4x4 (const shz_mat4x4_t matrix1, const shz_mat4x4_t matrix2) SHZ_NOEXCEPT

void	shz_xmtrx_load_apply_unaligned_4x4 (const float matrix1[16], const float matrix2[16]) SHZ_NOEXCEPT

void	shz_xmtrx_load_apply_store_4x4 (shz_mat4x4_t out, const shz_mat4x4_t matrix1, const shz_mat4x4_t *matrix2) SHZ_NOEXCEPT

void	shz_xmtrx_load_apply_store_unaligned_4x4 (float out[16], const float matrix1[16], const float matrix2[16]) SHZ_NOEXCEPT

void	shz_xmtrx_load_apply_store_3x4 (shz_mat3x4_t out, const shz_mat3x4_t matrix1, const shz_mat3x4_t *matrix2) SHZ_NOEXCEPT

void	shz_xmtrx_load_apply_store_3x3 (shz_mat3x3_t out, const shz_mat3x3_t matrix1, const shz_mat3x3_t *matrix2) SHZ_NOEXCEPT

Transformations
Transforming vectors and points against XMTRX.
shz_vec4_t	shz_xmtrx_transform_vec4 (shz_vec4_t vec) SHZ_NOEXCEPT

shz_vec3_t	shz_xmtrx_transform_vec3 (shz_vec3_t vec) SHZ_NOEXCEPT

shz_vec2_t	shz_xmtrx_transform_vec2 (shz_vec2_t vec) SHZ_NOEXCEPT

shz_vec2_t	shz_xmtrx_transform_point2 (shz_vec2_t pt) SHZ_NOEXCEPT

shz_vec3_t	shz_xmtrx_transform_point3 (shz_vec3_t pt) SHZ_NOEXCEPT

Setters
Sets the values of related XMTRX components.
void	shz_xmtrx_set_translation (float x, float y, float z) SHZ_NOEXCEPT

Miscellaneous
Random operations and conversions on XMTRX.
void	shz_xmtrx_add_4x4 (const shz_mat4x4_t *mat) SHZ_NOEXCEPT

void	shz_xmtrx_sub_4x4 (const shz_mat4x4_t *mat) SHZ_NOEXCEPT

void	shz_xmtrx_add_symmetric_skew (float x, float y, float z) SHZ_NOEXCEPT

void	shz_xmtrx_add_diagonal (float x, float y, float z, float w) SHZ_NOEXCEPT

void	shz_xmtrx_transpose (void) SHZ_NOEXCEPT

void	shz_xmtrx_negate (void) SHZ_NOEXCEPT

void	shz_xmtrx_abs (void) SHZ_NOEXCEPT

void	shz_xmtrx_init_fft_weights (float radians) SHZ_NOEXCEPT

shz_quat_t	shz_xmtrx_to_quat (void) SHZ_NOEXCEPT

float	shz_xmtrx_determinant (void) SHZ_NOEXCEPT

void	shz_xmtrx_invert (void) SHZ_NOEXCEPT

Detailed Description

Active Matrix API.

This file provides an API built around manipulating and performing calculations using the SH4's "current" 4x4 matrix, which is held within a secondary back-bank of 16 single-precision floating-point registers.

Todo

shz_xmtrx_xxx_fft()
shz_xmtrx_invert() (within XMTRX)
shz_xmtrx_position()
shz_xmtrx_size()
shz_xmtrx_angles()
shz_xmtrx_init_rotation_quat() (within XMTRX)
shz_xmtrx_apply_store_4x4()

Author: 2025, 2026 Falco Girgis; 2025 Twada; 2026 TapamN

Copyright: MIT License

Definition in file shz_xmtrx.h.

Enumeration Type Documentation

◆ shz_xmtrx_reg

enum shz_xmtrx_reg

Registers comprising XMTRX, in the FPU back-bank.

Enumerator
SHZ_XMTRX_XF0	FP register `xf0`.
SHZ_XMTRX_XF1	FP register `xf1`.
SHZ_XMTRX_XF2	FP register `xf2`.
SHZ_XMTRX_XF3	FP register `xf3`.
SHZ_XMTRX_XF4	FP register `xf4`.
SHZ_XMTRX_XF5	FP register `xf5`.
SHZ_XMTRX_XF6	FP register `xf6`.
SHZ_XMTRX_XF7	FP register `xf7`.
SHZ_XMTRX_XF8	FP register `xf8`.
SHZ_XMTRX_XF9	FP register `xf9`.
SHZ_XMTRX_XF10	FP register `xf10`.
SHZ_XMTRX_XF11	FP register `xf11`.
SHZ_XMTRX_XF12	FP register `xf12`.
SHZ_XMTRX_XF13	FP register `xf13`.
SHZ_XMTRX_XF14	FP register `xf14`.
SHZ_XMTRX_XF15	FP register `xf15`.

Definition at line 64 of file shz_xmtrx.h.

                           {
    SHZ_XMTRX_XF0,  //!< FP register `xf0`.
    SHZ_XMTRX_XF1,  //!< FP register `xf1`.
    SHZ_XMTRX_XF2,  //!< FP register `xf2`.
    SHZ_XMTRX_XF3,  //!< FP register `xf3`.
    SHZ_XMTRX_XF4,  //!< FP register `xf4`.
    SHZ_XMTRX_XF5,  //!< FP register `xf5`.
    SHZ_XMTRX_XF6,  //!< FP register `xf6`.
    SHZ_XMTRX_XF7,  //!< FP register `xf7`.
    SHZ_XMTRX_XF8,  //!< FP register `xf8`.
    SHZ_XMTRX_XF9,  //!< FP register `xf9`.
    SHZ_XMTRX_XF10, //!< FP register `xf10`.
    SHZ_XMTRX_XF11, //!< FP register `xf11`.
    SHZ_XMTRX_XF12, //!< FP register `xf12`.
    SHZ_XMTRX_XF13, //!< FP register `xf13`.
    SHZ_XMTRX_XF14, //!< FP register `xf14`.
    SHZ_XMTRX_XF15  //!< FP register `xf15`.
} shz_xmtrx_reg_t, shz_xmtrx_reg;

Function Documentation

◆ shz_xmtrx_read()

float shz_xmtrx_read ( shz_xmtrx_reg_t xf )

Returns the floating-point value held within the given XMTRX register.

◆ shz_xmtrx_write()

void shz_xmtrx_write	(	shz_xmtrx_reg_t	xf,
		float	value )

Sets the floating-point value held within the given XMTRX register to value.

◆ shz_xmtrx_read_row()

shz_vec4_t shz_xmtrx_read_row ( unsigned int index )

Returns the values at the the given row index, as a 4D vector.

◆ shz_xmtrx_read_col()

shz_vec4_t shz_xmtrx_read_col ( unsigned int index )

Returns the values at the given column index, as a 4D vector.

◆ shz_xmtrx_write_row()

void shz_xmtrx_write_row	(	unsigned int	index,
		shz_vec4_t	vector )

Sets the values at the given row index to the given 4D vector.

◆ shz_xmtrx_write_col()

void shz_xmtrx_write_col	(	unsigned int	index,
		shz_vec4_t	vector )

Sets the values at the given column index to the given 4D vector.

◆ shz_xmtrx_swap_rows()

void shz_xmtrx_swap_rows	(	unsigned int	index1,
		unsigned int	index2 )

Swaps the values of the rows with the given indices.

◆ shz_xmtrx_swap_cols()

void shz_xmtrx_swap_cols	(	unsigned int	index1,
		unsigned int	index2 )

Swaps the values of the columns with the given indices.

◆ shz_xmtrx_load_4x4()

void shz_xmtrx_load_4x4 ( const shz_mat4x4_t * matrix )

Loads the given 4x4 matrix as XMTRX.

◆ shz_xmtrx_load_wxyz_4x4()

void shz_xmtrx_load_wxyz_4x4 ( const shz_mat4x4_t * matrix )

Loads the given 4x4 matrix as XMTRX, with the 4th column for translation being loaded as the first column.

◆ shz_xmtrx_load_unaligned_4x4()

void shz_xmtrx_load_unaligned_4x4 ( const float matrix[16] )

Loads the given array of unaligned 16 float values as the 4x4 XMTRX matrix.

◆ shz_xmtrx_load_cols_4x4()

void shz_xmtrx_load_cols_4x4	(	const shz_vec4_t *	c1,
		const shz_vec4_t *	c2,
		const shz_vec4_t *	c3,
		const shz_vec4_t *	c4 )

Sets XMTRX equal to the 4x4 matrix created from the 4 given 4D column vectors.

◆ shz_xmtrx_load_rows_4x4()

void shz_xmtrx_load_rows_4x4	(	const shz_vec4_t *	r1,
		const shz_vec4_t *	r2,
		const shz_vec4_t *	r3,
		const shz_vec4_t *	r4 )

Sets XMTRX equal to the 4x4 matrix created from the 4 given 4D row vectors.

◆ shz_xmtrx_load_transpose_4x4()

void shz_xmtrx_load_transpose_4x4 ( const shz_mat4x4_t * matrix )

Loads XMTRX with the transpose of the given 4x4 matrix.

◆ shz_xmtrx_load_transpose_unaligned_4x4()

void shz_xmtrx_load_transpose_unaligned_4x4 ( const float matrix[16] )

Loads XMTRX with the transpose of the 4x4 matrix created from the given unaligned array of 16 floats.

◆ shz_xmtrx_load_3x4()

void shz_xmtrx_load_3x4 ( const shz_mat3x4_t * matrix )

Loads the given 3x4 matrix into XMTRX, initializing its remaining elements to identity.

◆ shz_xmtrx_load_cols_4x3()

void shz_xmtrx_load_cols_4x3	(	const shz_vec4_t *	c1,
		const shz_vec4_t *	c2,
		const shz_vec4_t *	c3 )

Loads the 3x4 matrix formed from the given 3 4D column vectors into XMTRX.

All remaining elements are initialized to identity matrix values.

See also: shz_xmtrx_load_rows_3x4()

◆ shz_xmtrx_load_rows_3x4()

void shz_xmtrx_load_rows_3x4	(	const shz_vec4_t *	r1,
		const shz_vec4_t *	r2,
		const shz_vec4_t *	r3 )

Loads the 3x4 matrix formed from the given 3 4D row vectors into XMTRX.

All remaining elements are initialized to identity matrix values.

See also: shz_xmtrx_load_cols_3x4()

◆ shz_xmtrx_load_3x3()

void shz_xmtrx_load_3x3 ( const shz_mat3x3_t * matrix )

Loads the given 3x3 matrix into XMTRX, initalizing its remaining elements to identity.

◆ shz_xmtrx_load_transpose_3x3()

void shz_xmtrx_load_transpose_3x3 ( const float * matrix )

Loads the transpose of the given 3x3 matrix into XMTRX, initializing its remaining elements to identity.

◆ shz_xmtrx_load_2x2()

void shz_xmtrx_load_2x2 ( const shz_mat2x2_t * matrix )

Loads the given 2x2 matrix into XMTRX, initializing its remaining elements to identity.

◆ shz_xmtrx_store_4x4()

void shz_xmtrx_store_4x4 ( shz_mat4x4_t * matrix )

Stores the current values held within XMTRX into the given 4x4 matrix.

◆ shz_xmtrx_store_unaligned_4x4()

void shz_xmtrx_store_unaligned_4x4 ( float matrix[16] )

Stores the current values held within XMTRX into the given unaligned 16-float array.

◆ shz_xmtrx_store_transpose_4x4()

void shz_xmtrx_store_transpose_4x4 ( shz_mat4x4_t * matrix )

Stores the transpose of the current values held within XMTRX into the given 4x4 matrix.

◆ shz_xmtrx_store_transpose_unaligned_4x4()

void shz_xmtrx_store_transpose_unaligned_4x4 ( float matrix[16] )

Stores the transpose of the the current values held within XMTRX into the given 16-element float array.

◆ shz_xmtrx_store_3x4()

void shz_xmtrx_store_3x4 ( shz_mat3x4_t * matrix )

Stores the top-left 3x4 values currently held within XMTRX into the given matrix.

◆ shz_xmtrx_store_3x3()

void shz_xmtrx_store_3x3 ( shz_mat3x3_t * matrix )

Stores the top-left 3x3 values currently held within XMTRX into the given matrix.

◆ shz_xmtrx_store_transpose_3x3()

void shz_xmtrx_store_transpose_3x3 ( shz_mat3x3_t * matrix )

Stores the transpose of the top-left 3x3 values currently held within XMTRX into the given matrix.

◆ shz_xmtrx_store_2x2()

void shz_xmtrx_store_2x2 ( shz_mat2x2_t * matrix )

Stores the top-left 2x2 values currently held within XMTRX into the given matrix.

◆ shz_xmtrx_init_identity()

void shz_xmtrx_init_identity ( void )

Quickly initializes XMTRX to be a 4D identity matrix.

Warning: This routine will not properly zero-out NaN values!

See also: shz_xmtrx_init_identity_safe()

◆ shz_xmtrx_init_identity_safe()

void shz_xmtrx_init_identity_safe ( void )

Safely initializes XMTRX to be a 4D identity matrix.

This routine is guaranteed to properly initialize XMTRX, regardless of NaN values.

See also: shz_xmtrx_init_identity()

◆ shz_xmtrx_init_zero()

void shz_xmtrx_init_zero ( void )

Initializes XMTRX to contain the value of 0.0f for each element.

◆ shz_xmtrx_init_one()

void shz_xmtrx_init_one ( void )

Initializes XMTRX to contain the value of 1.0f for each element.

◆ shz_xmtrx_init_fill()

void shz_xmtrx_init_fill ( float value )

Initializes XMTRX to contain the given value for each element.

◆ shz_xmtrx_init_translation()

void shz_xmtrx_init_translation	(	float	x,
		float	y,
		float	z )

Initializes XMTRX to be a 3D translation matrix to the given coordinates.

◆ shz_xmtrx_init_scale()

void shz_xmtrx_init_scale	(	float	x,
		float	y,
		float	z )

Initializes XMTRX to be a 3D scale matrix with the given dimensions.

◆ shz_xmtrx_init_rotation_x()

void shz_xmtrx_init_rotation_x ( float x )

Initializes XMTRX to be a 3D rotation matrix by x radians about the X axis.

◆ shz_xmtrx_init_rotation_y()

void shz_xmtrx_init_rotation_y ( float y )

Initializes XMTRX to be a 3D rotation matrix by y radians about the Y axis.

◆ shz_xmtrx_init_rotation_z()

void shz_xmtrx_init_rotation_z ( float z )

Initializes XMTRX to be a 3D rotation matrix by z radians about the Z axis.

◆ shz_xmtrx_init_rotation_xyz()

void shz_xmtrx_init_rotation_xyz	(	float	xAngle,
		float	yAngle,
		float	zAngle )

Initializes XMTRX to be a 3D X-Y-Z rotation matrix, with the corresponding angles given in radians.

Note: The given angles are represented as Tait-Bryan angles, representing an extrinsic rotation.

See also: shz_xmtrx_init_rotation_zyx(), shz_xmtrx_init_rotation_yxz()

◆ shz_xmtrx_init_rotation_zyx()

void shz_xmtrx_init_rotation_zyx	(	float	zAngle,
		float	yAngle,
		float	xAngle )

Initializes XMTRX to be a 3D Z-Y-X rotation matrix, with the corresponding angles given in radians.

Note: The given angles are represented as Tait-Bryan angles, representing an extrinsic rotation.

See also: shz_xmtrx_init_rotation_xyz(), shz_xmtrx_init_rotation_yxz()

◆ shz_xmtrx_init_rotation_zxy()

void shz_xmtrx_init_rotation_zxy	(	float	zAngle,
		float	xAngle,
		float	yAngle )

Initializes XMTRX to be a 3D Z-X-Y rotation matrix, with the corresponding angles given in radians.

Note: The given angles are represented as Tait-Bryan angles, representing an extrinsic rotation.

See also: shz_xmtrx_init_rotation_zyx(), shz_xmtrx_init_rotation_yxz()

◆ shz_xmtrx_init_rotation_yxz()

void shz_xmtrx_init_rotation_yxz	(	float	yAngle,
		float	xAngle,
		float	zAngle )

Initializes XMTRX to be a 3D Y-X-Z rotation matrix, with the corresponding angles given in radians.

Note: The given angles are represented as Tait-Bryan angles, representing an extrinsic rotation.

See also: shz_xmtrx_init_rotation_yxz(), shz_xmtrx_init_rotation_xyz()

◆ shz_xmtrx_init_rotation()

void shz_xmtrx_init_rotation	(	float	angle,
		float	xAxis,
		float	yAxis,
		float	zAxis )

Initializes XMTRX to a 3D rotation matrix of angle radians about the given axis.

◆ shz_xmtrx_init_diagonal()

void shz_xmtrx_init_diagonal	(	float	x,
		float	y,
		float	z,
		float	w )

Initializes XMTRX to be a diagonal matrix with the given diagonal values.

◆ shz_xmtrx_init_upper_triangular()

void shz_xmtrx_init_upper_triangular	(	float	col1,
		shz_vec2_t	col2,
		shz_vec3_t	col3,
		shz_vec4_t	col4 )

Initializes XMTRX to be an upper triangular matrix with the given column values.

◆ shz_xmtrx_init_lower_triangular()

void shz_xmtrx_init_lower_triangular	(	shz_vec4_t	col1,
		shz_vec3_t	col2,
		shz_vec2_t	col3,
		float	col4 )

Initializes XMTRX to be a lower triangular matrix with the given column values.

◆ shz_xmtrx_init_symmetric_skew()

void shz_xmtrx_init_symmetric_skew	(	float	x,
		float	y,
		float	z )

Initializes XMTRX to be the 3D symmetric skew matrix formed from the given vector components.

◆ shz_xmtrx_init_outer_product()

void shz_xmtrx_init_outer_product	(	shz_vec4_t	x,
		shz_vec4_t	y )

Initializes XMTRX to the 4D matrix resulting from taking the outer product of the two 4D vectors.

◆ shz_xmtrx_init_permutation_wxyz()

void shz_xmtrx_init_permutation_wxyz ( void )

Initializes XMTRX to a permutation matrix, which reorders the components of transformed vectors to be in WXYZ order.

◆ shz_xmtrx_init_permutation_yzwx()

void shz_xmtrx_init_permutation_yzwx ( void )

Initializes XMTRX to a permutation matrix, which reorders the components of transformed vectors to be in YZWX order.

◆ shz_xmtrx_init_screen()

void shz_xmtrx_init_screen	(	float	width,
		float	height )

Initializes XMTRX to the viewport matrix with the given dimensions.

fr[n + 0]	fr[n + 4]	fr[n + 8]	fr[n + 12]
w*0.5f	0.0f	0.0f	w*0.5f
0.0f	-h*0.5f	0.0f	h*0.5f
0.0f	0.0f	1.0f	0.0f
0.0f	0.0f	0.0f	1.0f

◆ shz_xmtrx_init_lookat()

void shz_xmtrx_init_lookat	(	shz_vec3_t	eye,
		shz_vec3_t	center,
		shz_vec3_t	up )

Initializes XMTRX to a "lookAt" view matrix, equivalent to gluLookAt().

Warning: This routine clobbers any previous XMTRX contents.

◆ shz_xmtrx_init_ortho()

void shz_xmtrx_init_ortho	(	float	left,
		float	right,
		float	bottom,
		float	top,
		float	near,
		float	far )

Initializes XMTRX to an orthographic projection matrix, equivalent to glOrtho().

Warning: This routine clobbers any previous XMTRX contents.

◆ shz_xmtrx_init_frustum()

void shz_xmtrx_init_frustum	(	float	left,
		float	right,
		float	bottom,
		float	top,
		float	near,
		float	far )

Initializes XMTRX to a frustum projection matrix, equivalent to glFrustum().

Warning: This routine clobbers any previous XMTRX contents.

◆ shz_xmtrx_init_perspective()

void shz_xmtrx_init_perspective	(	float	fov,
		float	aspect,
		float	near_z )

Initializes XMTRX to a perspective projection matrix.

Warning: This routine clobbers any previous XMTRX contents.

◆ shz_xmtrx_init_rotation_quat()

void shz_xmtrx_init_rotation_quat ( shz_quat_t q )

Initializes XMTRX to a 3D rotation matrix with its orientation given by a quaternion.

Warning: This routine clobbers any previous XMTRX contents.; This routine is out-of-line.

◆ shz_xmtrx_apply_4x4()

void shz_xmtrx_apply_4x4 ( const shz_mat4x4_t * matrix )

Multiplies and accumulates the given 4x4 matrix onto XMTRX.

◆ shz_xmtrx_apply_unaligned_4x4()

void shz_xmtrx_apply_unaligned_4x4 ( const float matrix[16] )

Multiplies and accumulates the given 16-entry float array as a 4x4 matrix onto XMTRX.

◆ shz_xmtrx_apply_transpose_4x4()

void shz_xmtrx_apply_transpose_4x4 ( const shz_mat4x4_t * matrix )

Multiplies and accumulates the transpose of the given 4x4 matrix onto XMTRX.

◆ shz_xmtrx_apply_transpose_unaligned_4x4()

void shz_xmtrx_apply_transpose_unaligned_4x4 ( const float matrix[16] )

Multiplies and accumulates the transpose of the given 16-entry float array as a 4x4 matrix onto XMTRX.

◆ shz_xmtrx_apply_reverse_4x4()

void shz_xmtrx_apply_reverse_4x4 ( const shz_mat4x4_t * matrix )

Multiplies and accumulates XMTRX onto matrix, storing the result as XMTRX.

◆ shz_xmtrx_apply_reverse_unaligned_4x4()

void shz_xmtrx_apply_reverse_unaligned_4x4 ( const float matrix[16] )

Multiplies and accumulates XMTRX onto the given float array as a 4x4 matrix, storing the result as XMTRX.

◆ shz_xmtrx_apply_reverse_transpose_4x4()

void shz_xmtrx_apply_reverse_transpose_4x4 ( const shz_mat4x4_t * matrix )

Multiplies and accumulates XMTRX onto the transpose of matrix, storing the result as XMTRX.

◆ shz_xmtrx_apply_reverse_transpose_unaligned_4x4()

void shz_xmtrx_apply_reverse_transpose_unaligned_4x4 ( const float matrix[16] )

Multiplies and accumulates XMTRX onto the transpose of the given float array as a 4x4 matrix, storing the result as XMTRX.

◆ shz_xmtrx_apply_3x4()

void shz_xmtrx_apply_3x4 ( const shz_mat3x4_t * matrix )

Multiplies and accumulates the given 3x4 matrix onto XMTRX, not modifying other elements.

◆ shz_xmtrx_apply_3x3()

void shz_xmtrx_apply_3x3 ( const shz_mat3x3_t * matrix )

Multiplies and accumulates the given 3x3 matrix onto XMTRX, not modifying other elements.

◆ shz_xmtrx_apply_transpose_3x3()

void shz_xmtrx_apply_transpose_3x3 ( const shz_mat3x3_t * matrix )

Multiplies and accumulateas the transpose of the given 3x3 matrix onto XMTRX, not modifying other elements.

◆ shz_xmtrx_apply_2x2()

void shz_xmtrx_apply_2x2 ( const shz_mat2x2_t * matrix )

Multiplies and accumulates the given 2x2 matrix onto XMTRX, not modifying other elements.

◆ shz_xmtrx_apply_translation()

void shz_xmtrx_apply_translation	(	float	x,
		float	y,
		float	z )

Adds the values of the given 3 components to the 3D translation components of XMTRX.

◆ shz_xmtrx_apply_scale()

void shz_xmtrx_apply_scale	(	float	x,
		float	y,
		float	z )

Multiplies the values of the inner 3x3 matrix by the given 3D scaling terms.

◆ shz_xmtrx_apply_rotation_x()

void shz_xmtrx_apply_rotation_x ( float x )

Transforms the values of the inner 3x3 matrix by a rotation matrix of x radians about the X axis.

◆ shz_xmtrx_apply_rotation_y()

void shz_xmtrx_apply_rotation_y ( float y )

Transforms the values of the inner 3x3 matrix by a rotation matrix of y radians about the Y axis.

◆ shz_xmtrx_apply_rotation_z()

void shz_xmtrx_apply_rotation_z ( float z )

Transforms the values of the inner 3x3 matrix by a rotation matrix of z radians about the Z axis.

◆ shz_xmtrx_apply_rotation_xyz()

void shz_xmtrx_apply_rotation_xyz	(	float	xAngle,
		float	yAngle,
		float	zAngle )

Multiplies and accumulates XMTRX by a 3D X-Y-Z rotation matrix, with the corresponding angles given in radians.

The transform is applied to the inner 3x3 values within XMTRX, preserving the translational components.

Note: The given angles are represented as Tait-Bryan angles, representing an extrinsic rotation.

See also: shz_xmtrx_apply_rotation_zyx(), shz_xmtrx_apply_rotation_yxz()

◆ shz_xmtrx_apply_rotation_zyx()

void shz_xmtrx_apply_rotation_zyx	(	float	zAngle,
		float	yAngle,
		float	xAngle )

Multiplies and accumulates XMTRX by a 3D Z-Y-X rotation matrix, with the corresponding angles given in radians.

The transform is applied to the inner 3x3 values within XMTRX, preserving the translational components.

Note: The given angles are represented as Tait-Bryan angles, representing an extrinsic rotation.

See also: shz_xmtrx_apply_rotation_xyz(), shz_xmtrx_apply_rotation_yxz()

◆ shz_xmtrx_apply_rotation_zxy()

void shz_xmtrx_apply_rotation_zxy	(	float	zAngle,
		float	xAngle,
		float	yAngle )

Multiplies and accumulates XMTRX by a 3D Z-X-Y rotation matrix, with the corresponding angles given in radians.

The transform is applied to the inner 3x3 values within XMTRX, preserving the translational components.

Note: The given angles are represented as Tait-Bryan angles, representing an extrinsic rotation.

See also: shz_xmtrx_apply_rotation_zyx(), shz_xmtrx_apply_rotation_yxz()

◆ shz_xmtrx_apply_rotation_yxz()

void shz_xmtrx_apply_rotation_yxz	(	float	yAngle,
		float	xAngle,
		float	zAngle )

Multiplies and accumulates XMTRX by a 3D Y-X-Z rotation matrix, with the corresponding angles given in radians.

The transform is applied to the inner 3x3 values within XMTRX, preserving the translational components.

Note: The given angles are represented as Tait-Bryan angles, representing an extrinsic rotation.

See also: shz_xmtrx_apply_rotation_xyz(), shz_xmtrx_apply_rotation_zyx()

◆ shz_xmtrx_apply_rotation()

void shz_xmtrx_apply_rotation	(	float	angle,
		float	x,
		float	y,
		float	z )

Transforms the values of the inner 3x3 matrix by a rotation matrix of angle radians about the axis with the given components.

◆ shz_xmtrx_apply_rotation_quat()

void shz_xmtrx_apply_rotation_quat ( shz_quat_t quat )

Transforms the values of the inner 3x3 matrix by the rotation matrix represented by the given quaternion.

◆ shz_xmtrx_apply_lookat()

void shz_xmtrx_apply_lookat	(	shz_vec3_t	eye,
		shz_vec3_t	center,
		shz_vec3_t	up )

Applies the 3D "lookAt" matrix constructed with the given vector components onto XMTRX. Equivalent to gluLookAt().

◆ shz_xmtrx_apply_ortho()

void shz_xmtrx_apply_ortho	(	float	left,
		float	right,
		float	bottom,
		float	top,
		float	near,
		float	far )

Applies a 2D orthographic projection matrix onto XMTRX, equivalent to glOrtho().

◆ shz_xmtrx_apply_frustum()

void shz_xmtrx_apply_frustum	(	float	left,
		float	right,
		float	bottom,
		float	top,
		float	near,
		float	far )

Applies a frustum projection matrix onto XMTRX, equivalent to glFrustum().

◆ shz_xmtrx_apply_perspective()

void shz_xmtrx_apply_perspective	(	float	fov,
		float	aspect,
		float	near_z )

Multiplies and accumulates the perspective matrix constructed from the given values onto XMTRX.

fr[n + 0]	fr[n + 4]	fr[n + 8]	fr[n + 12]
cot(f)/a	0.0f	0.0f	0.0f
0.0f	cot(f)	0.0f	0.0f
0.0f	0.0f	0.0f	nz
0.0f	0.0f	-1.0f	0.0f

◆ shz_xmtrx_apply_screen()

void shz_xmtrx_apply_screen	(	float	width,
		float	height )

Multiplies and accumulates the viewport matrix created with the given components.

fr[n + 0]	fr[n + 4]	fr[n + 8]	fr[n + 12]
w*0.5f	0.0f	0.0f	w*0.5f
0.0f	-h*0.5f	0.0f	h*0.5f
0.0f	0.0f	1.0f	0.0f
0.0f	0.0f	0.0f	1.0f

◆ shz_xmtrx_apply_symmetric_skew()

void shz_xmtrx_apply_symmetric_skew	(	float	x,
		float	y,
		float	z )

Multiplies and accumulates the 3D symmetric skew matrix with the given components onto XMTRX.

◆ shz_xmtrx_apply_permutation_wxyz()

void shz_xmtrx_apply_permutation_wxyz ( void )

Multiplies and accumulates a permutation matrix, which reorders the components of transformed vectors to be in WXYZ order.

◆ shz_xmtrx_apply_permutation_yzwx()

void shz_xmtrx_apply_permutation_yzwx ( void )

Multiplies and accumulates a permutation matrix, which reorders the components of transformed vectors to be in YZWX order.

◆ shz_xmtrx_apply_self()

void shz_xmtrx_apply_self ( void )

Multiplies and accumulatse the XMTRX matrix by itself, squaring it.

◆ shz_xmtrx_translate()

void shz_xmtrx_translate	(	float	x,
		float	y,
		float	z )

Multiplies and accumulates XMTRX by a 3D translation matrix with the given components (glTranslatef() equivalent).

◆ shz_xmtrx_scale()

void shz_xmtrx_scale	(	float	x,
		float	y,
		float	z )

Multiplies and accumulates XMTRX by a 3D scaling matrix with the given components (glScalef() equivalent).

◆ shz_xmtrx_rotate_x()

void shz_xmtrx_rotate_x ( float radians )

Multiplies and accumulates XMTRX by a 3D rotation matrix about the X axis.

◆ shz_xmtrx_rotate_y()

void shz_xmtrx_rotate_y ( float radians )

Multiplies and accumulates XMTRX by a 3D rotation matrix about the Y axis.

◆ shz_xmtrx_rotate_z()

void shz_xmtrx_rotate_z ( float radians )

Multiplies and accumulates XMTRX by a 3D rotation matrix about the Z axis.

◆ shz_xmtrx_rotate_xyz()

void shz_xmtrx_rotate_xyz	(	float	xRadians,
		float	yRadians,
		float	zRadians )

Multiplies and accumulates XMTRX by 3D rotation matrices about the X then Y then Z axes.

◆ shz_xmtrx_rotate_zyx()

void shz_xmtrx_rotate_zyx	(	float	zRadians,
		float	yRadians,
		float	xRadians )

Multiplies and accumulates XMTRX by 3D rotation matrices about the Z then Y then X axes.

◆ shz_xmtrx_rotate_zxy()

void shz_xmtrx_rotate_zxy	(	float	zRadians,
		float	xRadians,
		float	yRadians )

Multiplies and accumulates XMTRX by 3D rotation matrices about the Z then X then Y axes.

◆ shz_xmtrx_rotate_yxz()

void shz_xmtrx_rotate_yxz	(	float	yRadians,
		float	xRadians,
		float	zRadians )

Multiplies and accumulates XMTRX by 3D rotation matrices about the Y then X then Z axes.

◆ shz_xmtrx_rotate()

void shz_xmtrx_rotate	(	float	radians,
		float	xAxis,
		float	yAxis,
		float	zAxis )

Multiplies and accumulates XMTRX by the 3D rotation matrix formed by the given axis and angle (glRotatef equivalent).

◆ shz_xmtrx_load_apply_4x4()

void shz_xmtrx_load_apply_4x4	(	const shz_mat4x4_t *	matrix1,
		const shz_mat4x4_t *	matrix2 )

Loads XMTRX with the result of applying matrix2 onto matrix1.

This operation is equivalent to: shz_xmtrx_load_4x4(matrix1); shz_xmtrx_apply_4x4(matrix2);

However, it has been optimized and pipelined for performing the load and multiply in parallel.

See also: shz_xmtrx_load_4x4(), shz_xmtrx_apply_4x4(), shz_xmtrx_load_apply_store_4x4()

◆ shz_xmtrx_load_apply_unaligned_4x4()

void shz_xmtrx_load_apply_unaligned_4x4	(	const float	matrix1[16],
		const float	matrix2[16] )

Loads XMTRX with the result of applying unaligned matrix2 onto matrix1.

This routine is equivalent to shz_xmtrx_load_apply_4x4(), except that the two operand matrices do not require 8-byte alignment and can simply be 16-element single-precision float arrays.

See also: shz_xmtrx_load_apply_4x4()

◆ shz_xmtrx_load_apply_store_4x4()

void shz_xmtrx_load_apply_store_4x4	(	shz_mat4x4_t *	out,
		const shz_mat4x4_t *	matrix1,
		const shz_mat4x4_t *	matrix2 )

Loads XMTRX with the 4x4 result of applying matrix2 onto matrix1, storing the result.

This operation is equivalent to: shz_xmtrx_load_4x4(matrix1); shz_xmtrx_apply_4x4(matrix2); shz_xmtrx_store_4x4(out);

However, it has been optimized and pipelined for performing the loads, multiplies, and stores in parallel.

See also: shz_xmtrx_load_apply(), shz_xmtrx_load_apply_store_unaligned_4x4()

◆ shz_xmtrx_load_apply_store_unaligned_4x4()

void shz_xmtrx_load_apply_store_unaligned_4x4	(	float	out[16],
		const float	matrix1[16],
		const float	matrix2[16] )

Loads XMTRX with the result of applying unaligned matrix2 onto unaligned matrix1, storing the result.

This routine is equivalent to shz_xmtrx_load_apply_store_4x4(), except that the three operand matrices do not require 8-byte alignment and can simply be 16-element single-precision float arrays.

See also: shz_xmtrx_load_apply_store_4x4()

◆ shz_xmtrx_load_apply_store_3x4()

void shz_xmtrx_load_apply_store_3x4	(	shz_mat3x4_t *	out,
		const shz_mat3x4_t *	matrix1,
		const shz_mat3x4_t *	matrix2 )

Loads XMTRX with the 3x4 result of applying matrix2 onto matrix1, storing the result.

This operation is equivalent to: shz_xmtrx_load_3x4(matrix1); shz_xmtrx_apply_3x4(matrix2); shz_xmtrx_store_3x4(out);

However, it has been optimized and pipelined for performing the loads, multiplies, and stores in parallel.

Note: The resulting matrix does not get stored within XMTRX, despite it getting clobbered.

See also: shz_xmtrx_load_3x4(), shz_xmtrx_apply_3x4(), shz_xmtrx_store_3x4()

◆ shz_xmtrx_load_apply_store_3x3()

void shz_xmtrx_load_apply_store_3x3	(	shz_mat3x3_t *	out,
		const shz_mat3x3_t *	matrix1,
		const shz_mat3x3_t *	matrix2 )

Loads XMTRX with the 3x3 result of applying matrix2 onto matrix1, storing the result.

This operation is equivalent to: shz_xmtrx_load_3x3(matrix1); shz_xmtrx_apply_3x3(matrix2); shz_xmtrx_store_3x3(out);

However, it has been optimized and pipelined for performing the loads, multiplies, and stores in parallel.

Note: The resulting matrix does not get stored within XMTRX, despite it getting clobbered.

See also: shz_xmtrx_load_3x3(), shz_xmtrx_apply_3x3(), shz_xmtrx_store_3x3()

◆ shz_xmtrx_transform_vec4()

shz_vec4_t shz_xmtrx_transform_vec4 ( shz_vec4_t vec )

Returns the 4D vector that is the result of transforming vec by XMTRX.

◆ shz_xmtrx_transform_vec3()

shz_vec3_t shz_xmtrx_transform_vec3 ( shz_vec3_t vec )

Returns the 3D vector that is the result of transforming vec by XMTRX.

◆ shz_xmtrx_transform_vec2()

shz_vec2_t shz_xmtrx_transform_vec2 ( shz_vec2_t vec )

Returns the 2D vector that is the result of transforming vec by XMTRX.

◆ shz_xmtrx_transform_point2()

shz_vec2_t shz_xmtrx_transform_point2 ( shz_vec2_t pt )

Returns the 2D point that is the result of transforming pt by XMTRX.

◆ shz_xmtrx_transform_point3()

shz_vec3_t shz_xmtrx_transform_point3 ( shz_vec3_t pt )

Returns the 3D point that is the result of transforming pt by XMTRX.

◆ shz_xmtrx_set_translation()

void shz_xmtrx_set_translation	(	float	x,
		float	y,
		float	z )

Sets only the translational components of XMTRX to the given values.

◆ shz_xmtrx_add_4x4()

void shz_xmtrx_add_4x4 ( const shz_mat4x4_t * mat )

Adds each element within mat to each element within XMTRX, storing the result in XMTRX.

◆ shz_xmtrx_sub_4x4()

void shz_xmtrx_sub_4x4 ( const shz_mat4x4_t * mat )

Subtracts each element within mat from each element within XMTRX, storing the result in XMTRX.

◆ shz_xmtrx_add_symmetric_skew()

void shz_xmtrx_add_symmetric_skew	(	float	x,
		float	y,
		float	z )

Adds the values of a 3D symmetric skew matrix constructed from the given components to XMTRX.

◆ shz_xmtrx_add_diagonal()

void shz_xmtrx_add_diagonal	(	float	x,
		float	y,
		float	z,
		float	w )

Adds the values of a 4D diagonal matrix constructed from the given components to XMTRX.

◆ shz_xmtrx_transpose()

void shz_xmtrx_transpose ( void )

Transposes the elements within XMTRX, in-place.

◆ shz_xmtrx_negate()

void shz_xmtrx_negate ( void )

Negates each element held within XMTRX.

◆ shz_xmtrx_abs()

void shz_xmtrx_abs ( void )

Takes the absolute value of each element held within XMTRX.

◆ shz_xmtrx_init_fft_weights()

void shz_xmtrx_init_fft_weights ( float radians )

Initializes XMTRX to the sin/cos weights used to multiply two samples within an FFT.

◆ shz_xmtrx_to_quat()

shz_quat_t shz_xmtrx_to_quat ( void )

Constructs a quaternion from the 3D rotation matrix within XMTRX.

◆ shz_xmtrx_determinant()

float shz_xmtrx_determinant ( void )

Returns the determinant of XMTRX.

◆ shz_xmtrx_invert()

void shz_xmtrx_invert ( void )

Inverts XMTRX in-place.

Stores XMTRX to memory, computes the inverse via shz_mat4x4_inverse(), and reloads the result.

Warning: This routine is out-of-line.

Enumerations

Functions

Detailed Description

Enumeration Type Documentation

◆ shz_xmtrx_reg

Function Documentation

◆ shz_xmtrx_read()

◆ shz_xmtrx_write()

◆ shz_xmtrx_read_row()

◆ shz_xmtrx_read_col()

◆ shz_xmtrx_write_row()

◆ shz_xmtrx_write_col()

◆ shz_xmtrx_swap_rows()

◆ shz_xmtrx_swap_cols()

◆ shz_xmtrx_load_4x4()

◆ shz_xmtrx_load_wxyz_4x4()

◆ shz_xmtrx_load_unaligned_4x4()

◆ shz_xmtrx_load_cols_4x4()

◆ shz_xmtrx_load_rows_4x4()

◆ shz_xmtrx_load_transpose_4x4()

◆ shz_xmtrx_load_transpose_unaligned_4x4()

◆ shz_xmtrx_load_3x4()

◆ shz_xmtrx_load_cols_4x3()

◆ shz_xmtrx_load_rows_3x4()

◆ shz_xmtrx_load_3x3()

◆ shz_xmtrx_load_transpose_3x3()

◆ shz_xmtrx_load_2x2()

◆ shz_xmtrx_store_4x4()

◆ shz_xmtrx_store_unaligned_4x4()

◆ shz_xmtrx_store_transpose_4x4()

◆ shz_xmtrx_store_transpose_unaligned_4x4()

◆ shz_xmtrx_store_3x4()

◆ shz_xmtrx_store_3x3()

◆ shz_xmtrx_store_transpose_3x3()

◆ shz_xmtrx_store_2x2()

◆ shz_xmtrx_init_identity()

◆ shz_xmtrx_init_identity_safe()

◆ shz_xmtrx_init_zero()

◆ shz_xmtrx_init_one()

◆ shz_xmtrx_init_fill()

◆ shz_xmtrx_init_translation()

◆ shz_xmtrx_init_scale()

◆ shz_xmtrx_init_rotation_x()

◆ shz_xmtrx_init_rotation_y()

◆ shz_xmtrx_init_rotation_z()

◆ shz_xmtrx_init_rotation_xyz()

◆ shz_xmtrx_init_rotation_zyx()

◆ shz_xmtrx_init_rotation_zxy()

◆ shz_xmtrx_init_rotation_yxz()

◆ shz_xmtrx_init_rotation()

◆ shz_xmtrx_init_diagonal()

◆ shz_xmtrx_init_upper_triangular()

◆ shz_xmtrx_init_lower_triangular()

◆ shz_xmtrx_init_symmetric_skew()

◆ shz_xmtrx_init_outer_product()

◆ shz_xmtrx_init_permutation_wxyz()

◆ shz_xmtrx_init_permutation_yzwx()

◆ shz_xmtrx_init_screen()

◆ shz_xmtrx_init_lookat()

◆ shz_xmtrx_init_ortho()

◆ shz_xmtrx_init_frustum()

◆ shz_xmtrx_init_perspective()

◆ shz_xmtrx_init_rotation_quat()

◆ shz_xmtrx_apply_4x4()

◆ shz_xmtrx_apply_unaligned_4x4()

◆ shz_xmtrx_apply_transpose_4x4()

◆ shz_xmtrx_apply_transpose_unaligned_4x4()

◆ shz_xmtrx_apply_reverse_4x4()

◆ shz_xmtrx_apply_reverse_unaligned_4x4()

◆ shz_xmtrx_apply_reverse_transpose_4x4()

◆ shz_xmtrx_apply_reverse_transpose_unaligned_4x4()

◆ shz_xmtrx_apply_3x4()

◆ shz_xmtrx_apply_3x3()

◆ shz_xmtrx_apply_transpose_3x3()

◆ shz_xmtrx_apply_2x2()

◆ shz_xmtrx_apply_translation()

◆ shz_xmtrx_apply_scale()

◆ shz_xmtrx_apply_rotation_x()

◆ shz_xmtrx_apply_rotation_y()

◆ shz_xmtrx_apply_rotation_z()
